Horizontal Feed Mixer

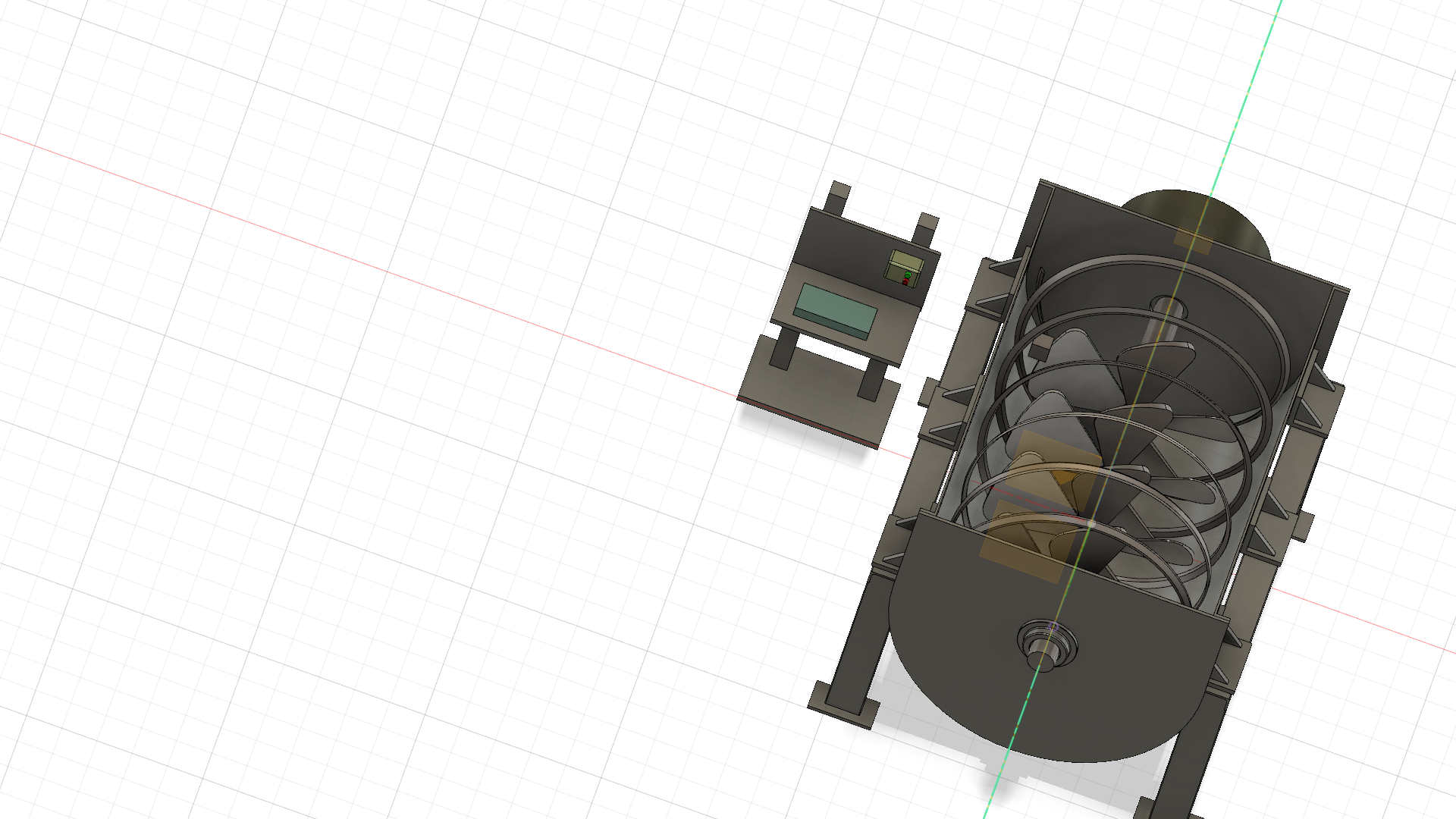

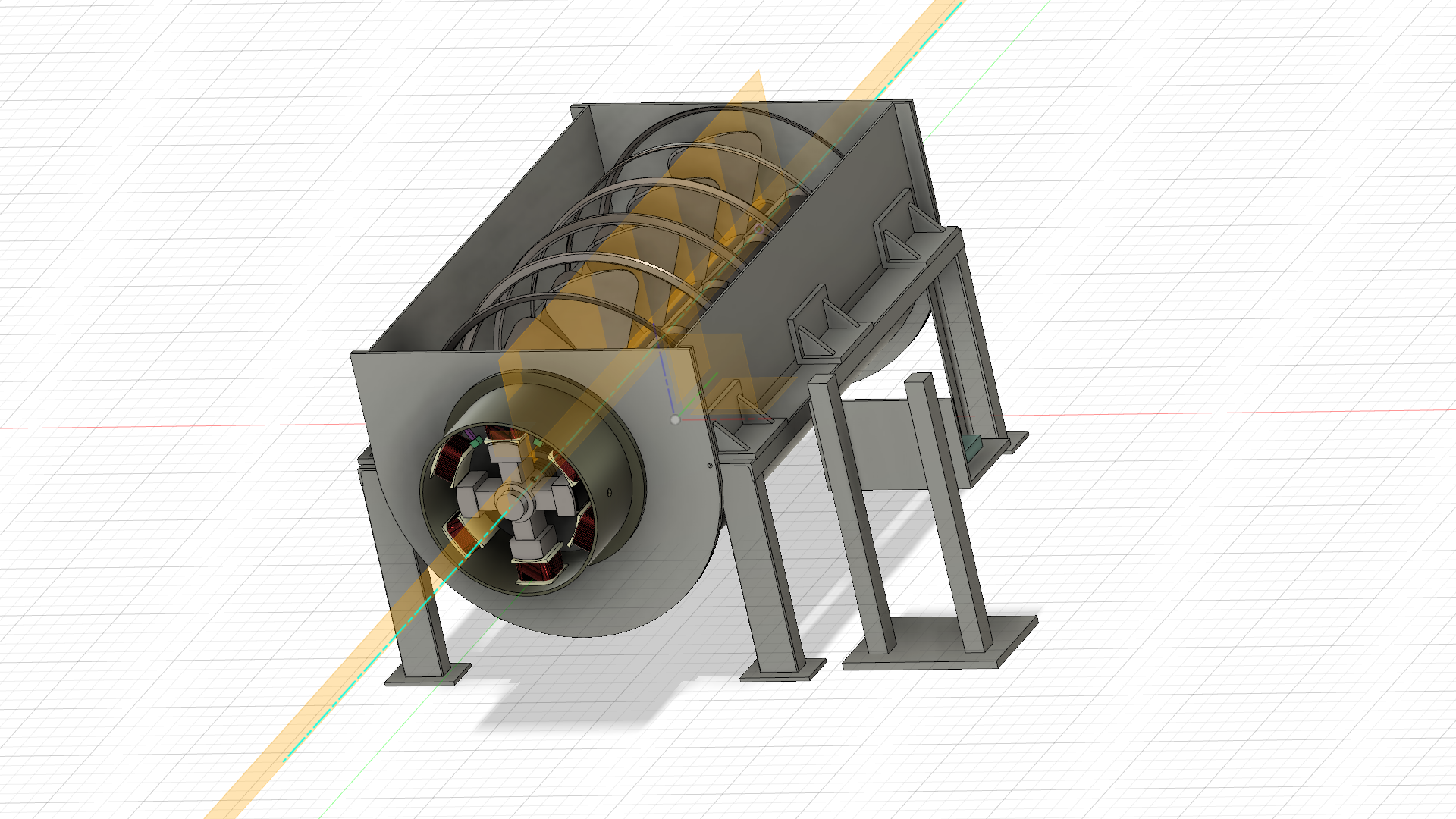

3D design of a horizontal feed mixer with internal auger system for agricultural use.
Gallery
3 images1 / 3
Overview
Designed a horizontal feed mixer including the cylindrical mixing chamber, internal auger, drive coupling, inlet hopper and structural support frame. Focused on serviceability and welded frame manufacturability.
Highlights
4 items- Cylindrical mixing chamber with internal auger
- Drive coupling and bearing layout
- Welded frame for floor mounting
- Serviceable inlet and discharge ports
